Power modules

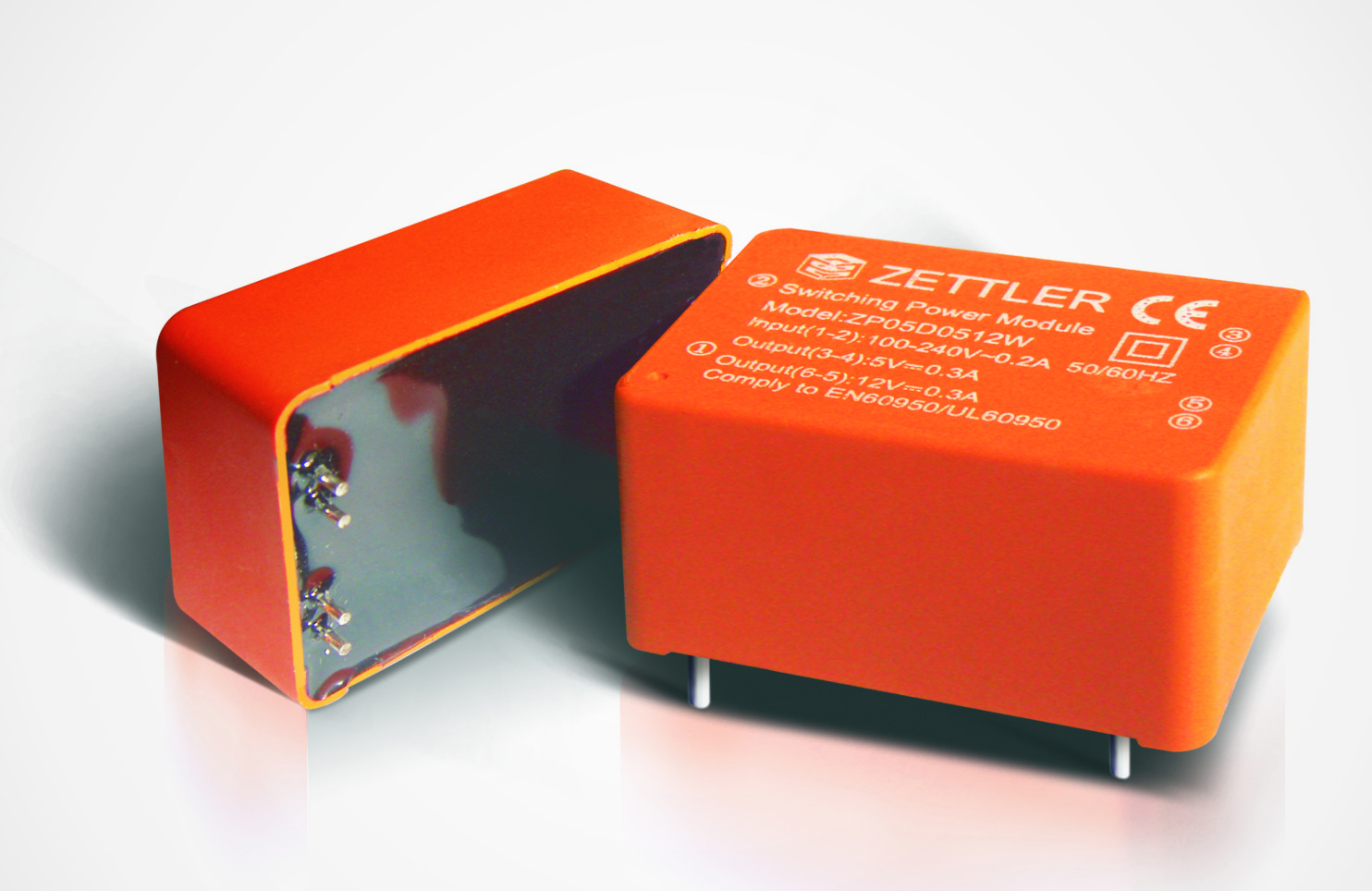

Power Module



A series of cost effective and reliable AC-DC power modules with a wide universal input range in a compact, plug & play package. Ideal for a variety of smart energy solutions such as low power lighting, audio or thermostat controls and other home electronics applications, as well as industrial controls.

For installation instructions, please directly contact our sales for information.

Key Benefits

  • Easy Plug & Play solution for low power applications
  • Long life: MTBF >1 million hours*
  • Compact encapsulated design
  • High Efficiency
  • Customizable

Key Features

  • Universal Input Range 85VAC-305VAC*
  • Wide ambient temperature capability -25℃ to +85℃*, full power output w/o derating
  • Low standby power consumption <0.1W
  • Protection Capability: OVP, OSP, OCP, OPP.
  • Compliance with UL/IEC standards
  • EMC compatible

Send Inquiry

HP


SeriesOutline Dimension(LxWxH)CertificatesCEDatasheet
1 Watt High Performance Series with Zero Crossing33.7×22.2×15.0mmTUV / ULAvailableHP01SXX00WI-X
1 Watt High Performance Series33.7×22.2×15.0mmTUV / ULAvailableHP01SXX00WI
2 Watt High Performance Series33.7×22.2×15.0mmTUV / ULAvailableHP02SXX00WI
3 Watt High Performance Series37.0×24.0x15.0mmTUV /ULAvailableHP03SXX00WJ
10 Watt Wide Input Voltage Series55.2×35.2×25.5mmTUV/UL/CBAvailableHPI10SXX00ED

ZP


SeriesOutline Dimension(LxWxH)CertificatesCEDatasheet
3 Watt Mini Series Single Output25.0×25.0x16.0mmTUV/UL/CBAvailableZPI03SXX00WC
3 Watt Series Single Output without Fuse23.9×23.0x18.0mmTUV /ULAvailableZP03SXX00WE
5 Watt Single Output Precision Series32.1×27.1×19.3mmTUV /ULAvailableZP05SXX00WB
10 Watt Series Single Output55.2×35.2×25.5mmTUV/CBAvailableZP10SXX00W
15 Watt Series Single Output52.4×27.2×24.0mmTUV/UL/CBAvailableZPL15SXX00WL
15 Watt Series Single Output52.4×27.2×31.0mmTUV/UL/CBAvailableZPL15SXX00WS
20 Watt Series Single Output52.4×27.2×24.0mmTUV/UL/CBAvailableZPL20SXX00WL
20 Watt Series Single Output52.4×27.2×31.0mmTUV/UL/CBAvailableZPL20SXX00WS
