PDS24-21224-M3P
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PDS24-21224-M3P | |
| 1 | |
| 47 – 63 Hz | |
| 230 V | |
| 12-0-12 V | |
| 1,0 A | |
| 24 VA | |
| IP20 | |
| DIMENSIONS | |
| 54 mm | |
| 90 mm | |
| 62 mm | |
| 0,6 kg | |
| ORDERING INFORMATION | |
| B-091-242124 | |
| 5703451016136 | |
TOROIDAL TRANSFORMERS
APPLICATION

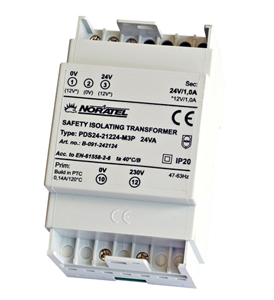

Compact single-phase safety isolating transformer for 35mm DIN-rail mounting. Designed and tested according to norm EN61558-2-6. Separate windings. Insulation class II, double isolated. CE approved. Short circuit and overload protected with built in PTC fuse. The transformer is capsulated in plastic. Easy ”snap on” mounting on 35mm DIN-rail.
PDS10 and PDS24 are designed with two 12V secondaries in series. PDS40 and PDS63 are designed with two separate 12V secondaries for parallel- (12V) or series- (24V) connection.
Designed for SELV-installation which require safety isolating transformer approved according to the CE directives. Typical alarms and automatic remote controls. PDS are designed to fit module mounting.
